Custom Engineering Solutions by Akshay Infrasys: Precision and Quality in Every Component
At Akshay Infrasys, we provide a wide range of custom-engineered components to meet the diverse needs of modern construction projects. Our offerings include robust Walk Doors (single or double), space-efficient Sliding Doors, and energy-efficient Aluminum Windows. We also deliver advanced Insulation solutions, high-performance Louvers, and reliable Fasteners to ensure structural integrity. Our Power Ventilators and Ridge Ventilators are designed for optimal airflow, while Skylights & Wall Lights bring natural illumination to your spaces. Additionally, our Roof Jacks, Roof Curbs, and Sand Trap Louvers are meticulously crafted to support and protect your building infrastructure, ensuring longevity and efficiency in every project.
Application & Uses

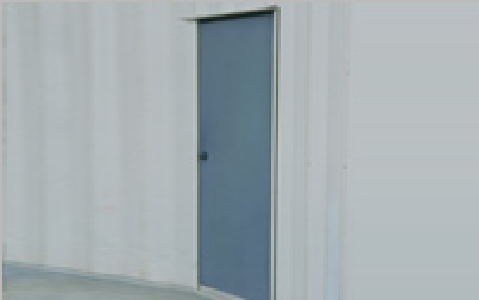

Walk Doors (Single or Double)
915 mm or 1830 mm wide x 2134mm high made of 20 gauge electro galvanized steel with a
core of polyurethane insulation.
Door fixture is provided.

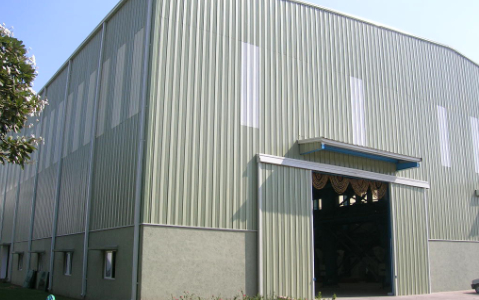

Sliding Doors
Sliding doors are used in hangars, warehouses, etc., where a larger opening into the
building is required.
They are not hinged but rather rollers are provided on top of the doors and
this roller is placed on brackets allowing a sliding movement.
These are either single leaf or
double leaf.
Aluminum Windows
These windows are placed on the walls of a building and are double slide.
They are
moved by a sliding action controlled by guide ways and the jab fins.
Multiple windows can be formed
by joining the jamb fins together.
Standard size of an aluminum window is 1 m x 1m.
It is also
provided with a half insect screen.

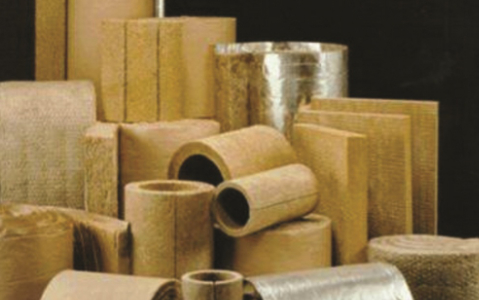

Insulation
These are panels made from high pressure injected polyurethane foam and are meant for
insulating a building.
They are CFC-free, self-extinguishing, can withstand intense heat, contain
extreme low temperatures and offer very low rates of water absorption and vapor transmission.
The
panels also provide excellent adhesion to the panel’s sheeting.

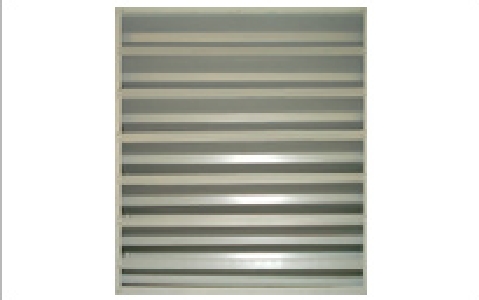

Louvers
A louver is a frame containing adjustable overlapping blades which allow air flow and
also block sunlight entry.
The standard size available is 1m x 1m, which also incorporates insect
screen, hand crank and blade adjustment lever.

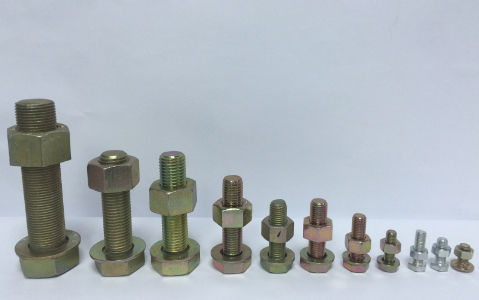

Fasteners
Fasteners are of self-drilling screws No. 14, made of steel wire and EPDM bonded
washers.
The fasteners are either plain carbon or stainless steel type.

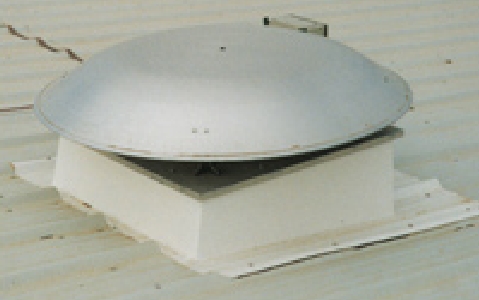

Power Ventilators
Kirby ‘C’ whirlwind low silhouette extract ventilator with spun aluminum non-return
shutter and one piece base and throat.
Provides ventilation when there is no wind and is placed on
top of the roof panels.

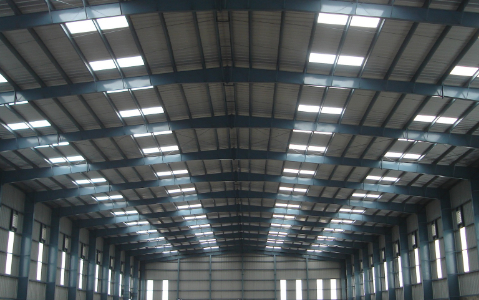

Skylights & Wall Lights
Made of translucent GRP to match Kirby rib and wall panels, with an estimated light transmitting capacity of 60 %.

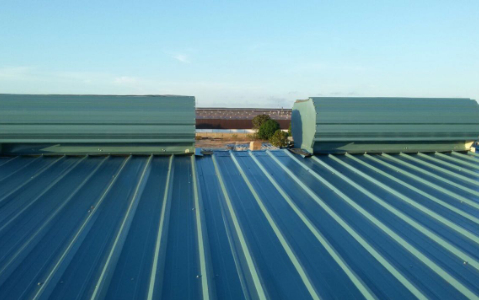

Ridge Ventilators
This is a gravity-type ventilator which is provided with a bird screen and mechanical
controlled damper.
Allows natural ventilation of the building.

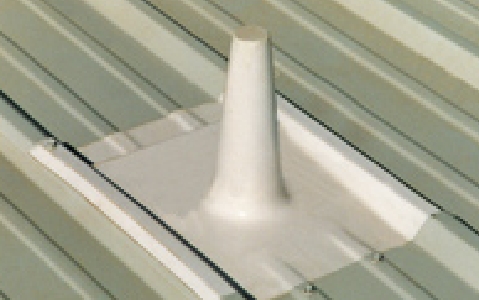

Roof Jacks
These are enclosures for pipes or stacks projecting from the roof. They allow for safe working on the roof.

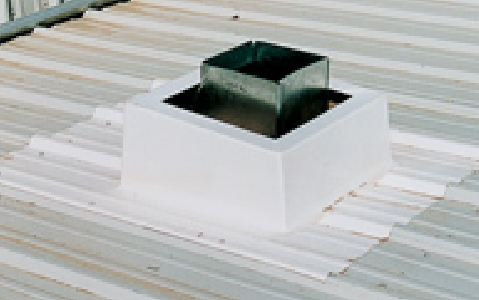

Roof Curbs
These are enclosures for ducts or other roof projections made up of reinforced plastic fitting Kirby rib roof panels.

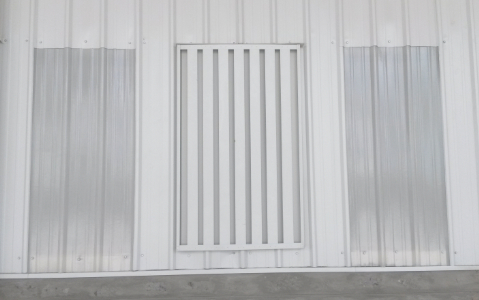

Sand Trap Louvers
This louver consists of different form of flashings arrangement in a predetermined
manner in order to create a sand trap.
The dual advantages of the sand trap louver is not only to
help with natural ventilation but also to act as a sand trap.

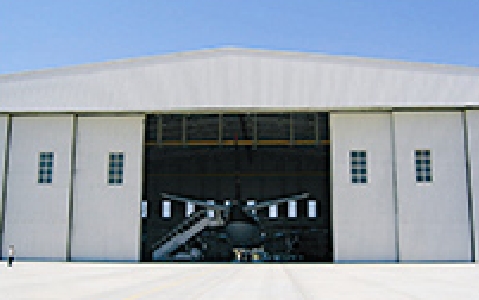

Aircraft Hangar Doors
Akshay Infra provides solutions for special applications such as aircraft hangars, customized hangar doors and framing, customized support systems for special equipment and maintenance cranes.

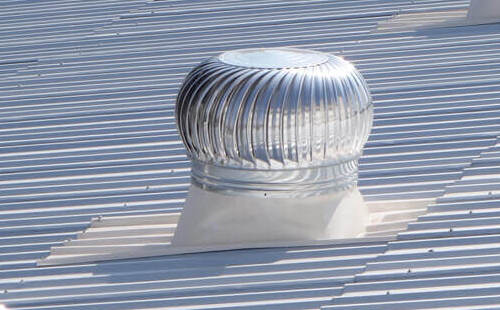

Turbo Ventilator Fans
Turbo Ventilator Fans are designed to provide effective and energy-efficient ventilation for industrial and commercial buildings. These ventilators harness wind energy to rotate the turbine, creating a suction effect that draws out hot air and moisture, ensuring a cooler and healthier indoor environment.
